Tool Holder Definition
Introduction
This page will assist in defining, or assigning holder geometry for a threading insert.

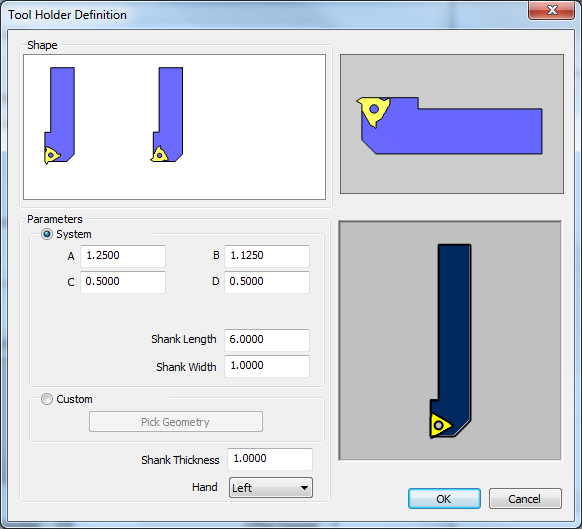

Parameters
System Shape
|
|
|
||
|
A |
|
A |
|
|
B |
|
B |
|
|
C |
|
C |
|
|
D |
|
D |
|
|
Shank Length |
|
Shank Length |
|
|
Shank Width |
|
Shank Width |
|
Custom Shape
-
Pick Geometry - When Custom Shape is selected, clicking the Pick Geometry button will hide the Tool Library and allow you to select Tool Holder geometry from the Workspace. See Related Topics for more information.
- Shank Thickness - sets the thickness of the holder.
-
Hand - Choose between a Left and Right facing holder.
|
|
|
||
|
Left |
Right |
Left |
Right |
|
|
|
|
|
