This feature is used to finish the profile after the Rough operation. It also operates like a Pattern Repeat (G73 on Fanuc®-style machines) cycle when multiple passes are used. When a Finish feature is added to the CAM tree, the system also adds the following items.
Geometry - This item is used to assign geometry used to create the toolpath. Right-click this item to produce a shortcut menu with the following options.
Re/Select - Select this option to enable selection mode and assign the appropriate geometry to this feature.
Remove - Select this option to remove any geometry associated with this feature.
Finish - Right-click this item in the CAM tree to produce a shortcut menu with three options.
Edit - When this option is selected, a dialog box appears providing you with options for modifying the settings that are used when calculating the tool movements. See the Finish dialog box for more detail on the values that are included for this feature.
Compute Toolpath - When this option is selected the system calculates the tool movements for the feature.
Post Yes/No - This option allows you to determine whether the feature is included with the posted program or not.
Rough - Right-click this item in the CAM tree to display two options for modifying the color and visibility of the feature.
Color - When this option is selected, a dialog box appears allowing you to select a color to use for the displayed toolpath.
Blank - When this option is selected, the system hides the selected toolpath if it is visible in the graphics area, or shows the toolpath, if it was previously hidden.

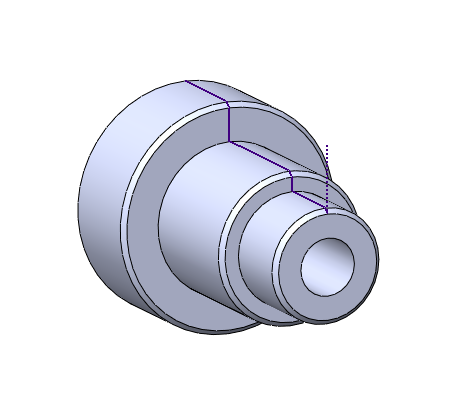

An example Finish toolpath is shown next:

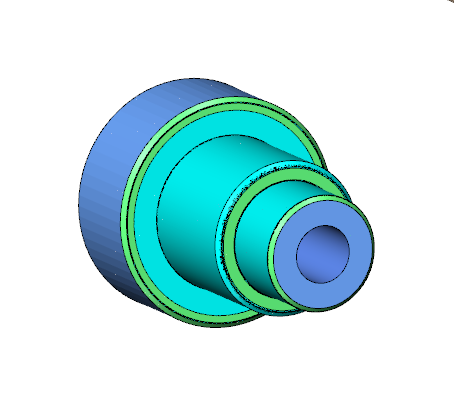

The same part shown after simulation:
