Deburr 4 Axis Example

Introduction

This tutorial explains how to create a Deburr operation and adjust that operation to output in 4 Axis.

Example File

The part file for this tutorial is available for download at: http://www.bobcad.com/helpfiles. If you are connected to the Internet, you can click the link provided to download and save the Deburr 4Axis Example.SLDPRT zip file. After extracting the zip file, you can then open the example file to use with this tutorial. In the example file provided, the Tool Crib is already equipped with the necessary tools and the stock and Machine Setup are already defined. The part is simulated using the BC_4x_Mill machine.



Part 1) Add the Feature

  1. In the Property Manager, click the CAM Tree tab.

  2. Right-click Machine Setup and click Mill Multiaxis.

  3. In the Multiaxis Wizard, click Deburring.

  4. Click Next>> to go to the Posting dialog box.

Part 2) Define the Posting Parameters

  1. The Work Offset # is automatically set to the value defined in the Machine Setup dialog box.

    You can change the value here to update the Work Offset # for the feature.

  2. Click Next>> to go to the Multiaxis Posting dialog box.

Part 3) Define the Multiaxis Posting Parameters

  1. Notice, at the top of the dialog box, that the Use Machine Settings check box is selected.

    This means that the Multiaxis Posting parameters for the feature use the same parameters as the machine that is selected in Current Settings.

    You can clear the Use Machine Settings check box to define the Multiaxis Posting parameters of the feature separately from the current machine settings.

    For this example, no changes are needed (more information is provided later).

  2. Click Next>> to go to the Tool page.

Part 4) Define the Tool Parameters

  1. In the Tool page, click Tool Crib.

    The Tool Crib dialog appears.

  2. Click ENDMILL FINISH and select the finishing tool.

    At the bottom of the dialog box, click OK.

  3. Click Next>> to go to the Parameters.

Part 5) Surface paths

  1. In the Geometry input group, click the ellipses button next to Part surfaces.

    The Mill Multiaxis wizard disappears and the Re/Select Geometry dialog opens.

  2. Select the check box for Select whole bodies.

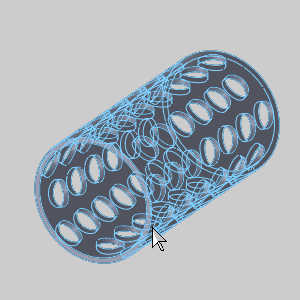

  3. Select the model.



  4. Click OK.

    The Mill Multiaxis Wizard returns.

  5. In the Surface Quality group, set the Cut tolerance to 0.001.

    This will reduce the calculation time and can be adjusted after we obtain the desired result.

Part 6) Tool axis control

  1. At the top of the wizard, click the Tool axis control tab.

  2. In the Tilting group, set the Machining type to 4 axis (rotary).

  3. Click the ellipses button next to Axis.

    The Line dialog appears.

  4. Set the Direction to X.

  5. Click OK.

    The Line dialog disappears.

  6. Click Compute.


Part 7) Simulation

  1. To view the program, in the Quick access menu of the CAM Tree, click Simulation.

  2. Click Play to view the current operation.



    Notice that while we are able to deburr the outside of the part, the inner edges remain untouched.

  3. To close simulation, in the BobCAM menu, click Exit Simulation.

Part 8) Edit the tool

  1. In the CAM Tree, right-click the feature and select Edit.

  2. In the tree on the left of the wizard, click Finish.

  3. In the Tool page, click Tool Crib.

    The Tool Crib dialog appears.

  4. Click LOLLIPOP and select the tool.

    At the bottom of the dialog box, click OK.

  5. Click Compute.

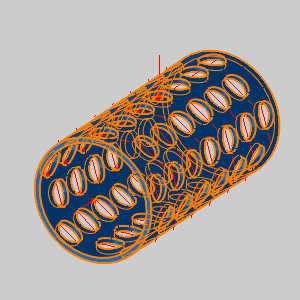

    Notice the additional places toolpath has automatically been placed now that we are using a tool capable of undercuts.

Part 9) Simulation

For more help using simulation, view Getting Started with Simulation.



  1. To view the program, in the Quick access menu of the CAM Tree, click Simulation.

  2. Click Play to view the current operation.



    Notice the undercuts now being completed by the operation.

  3. To close simulation, in the BobCAM menu, click Exit Simulation.





This concludes the example.
